What's NEW in CMS IntelliCAD® 8.3 Premium

Working with Files

• Search for files when using the Open command by clicking Tools > Find.

• Package drawings and supporting files using the eTransmit command.

• More options are available for attaching point cloud files using the Point Cloud Underlay command.

Hatches

• Hatch patterns now support gradients.

• New dialog box interface for the Boundary Hatch command.

• HATCHTOBACK command moves hatches to the back of the draw order.

User Interface

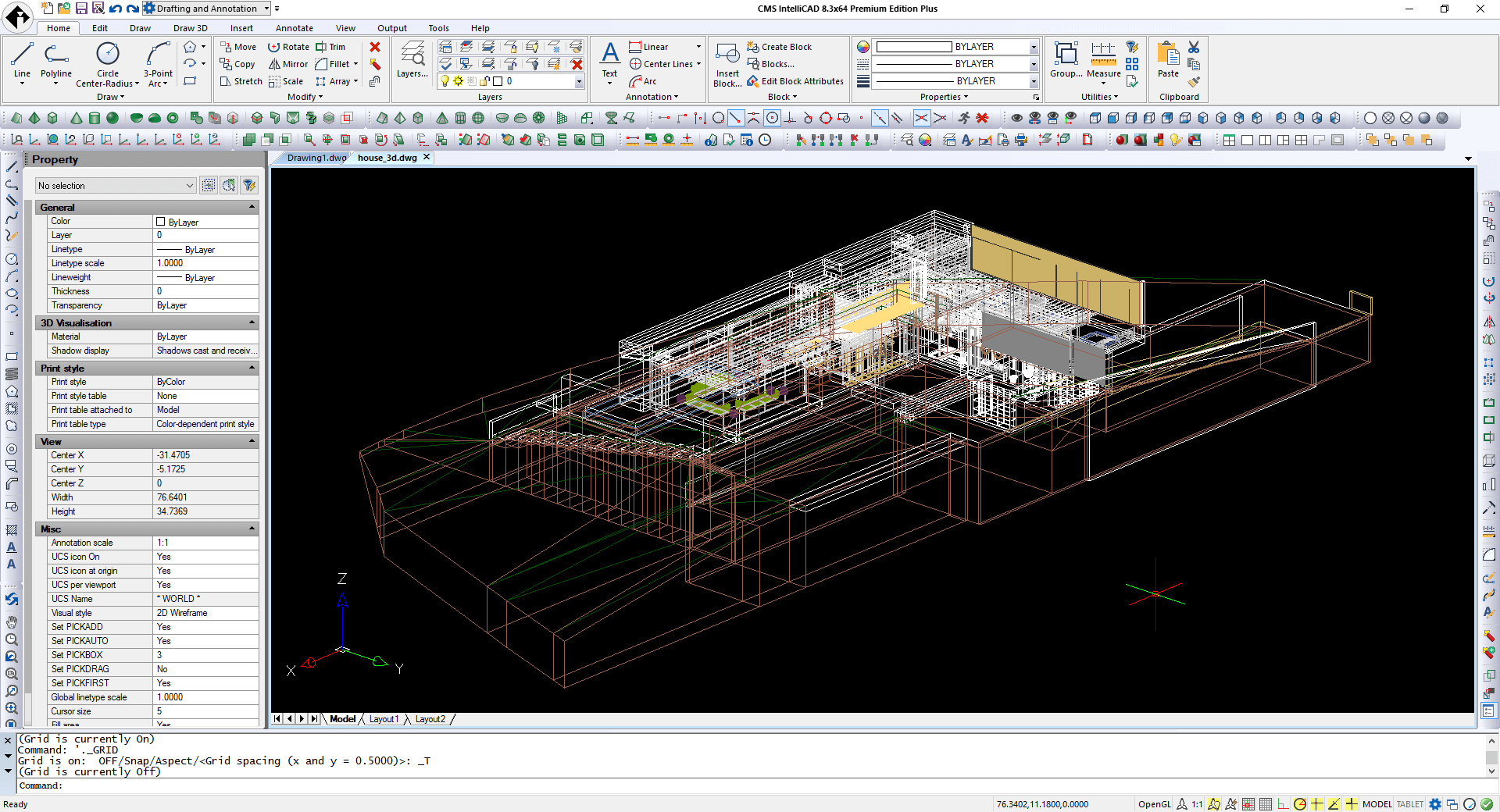

• Show drawings on individual tabs in the main IntelliCAD window. Use the Options command, click the Display tab, then click MDI Options to specify settings for drawing tabs.

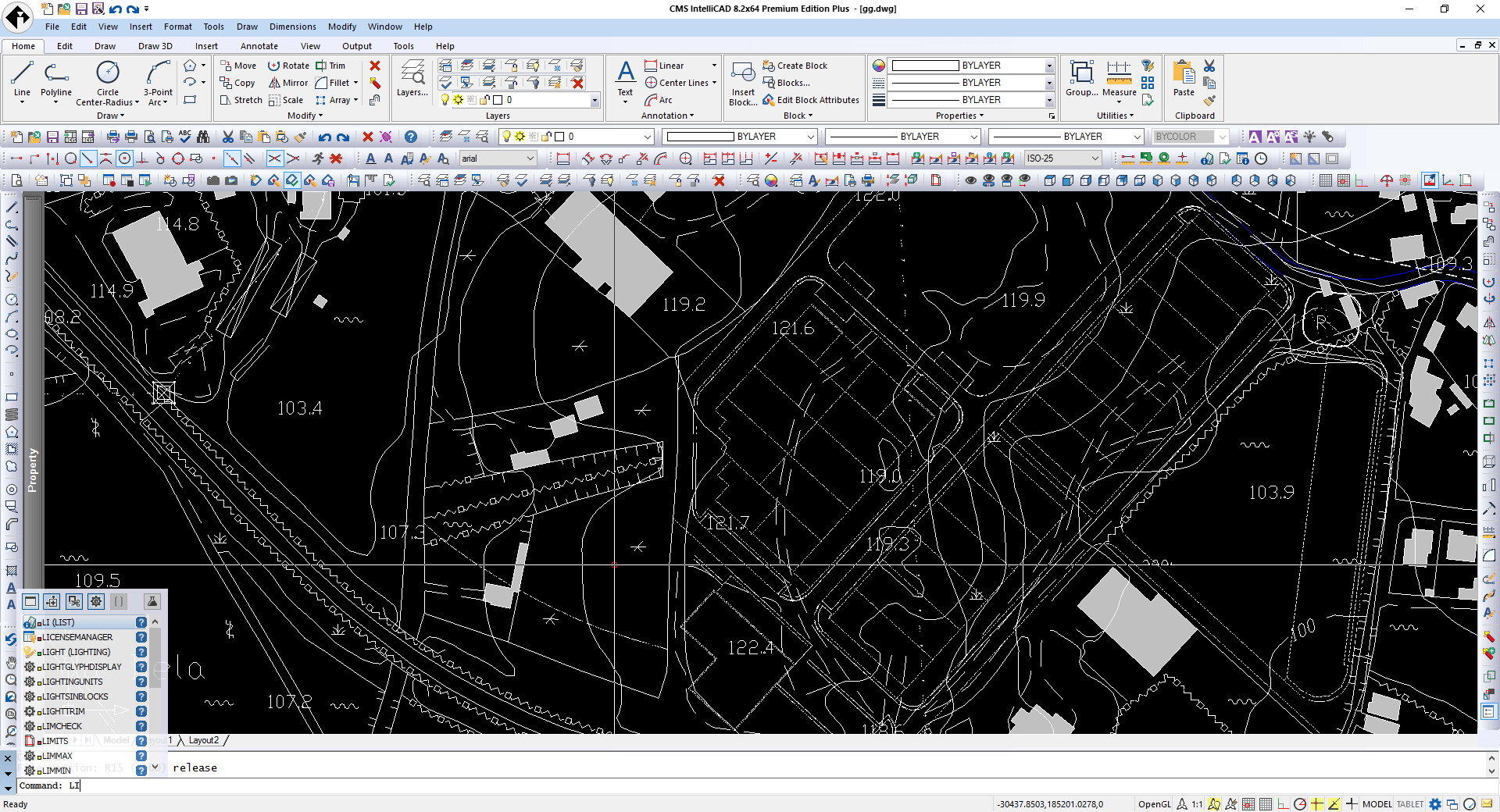

• For versions of IntelliCAD with a ribbon, workspaces are now easily accessible on the Quick Access toolbar.

• Easily save workspaces by clicking Workspaces in the status bar and choosing Save Current As.

• The Drawing Settings command has improved user interface that uses tabs instead of drop-down lists that were used previously.

• Added -MENUUNLOAD command line version.

More features

• Select entities by creating filters using the Filter command.

• When using the Print command, you can now select print transparency.

APIs

• IntelliCAD 8.3 uses Teigha version 4.2.0 from Open Design Alliance.

• Major LISP upgrade (VL*, VLA*, VLAX* functions).

System Variables

• Added or updated: DTEXTED, GFANG, GFCLR1, GFCLR2, GFCLRLUM, GFCLRSTATE, GFNAME, GFSHIFT, MDISTYLE, MTEXTED, TEXTED, TEXTEDITMODE, XCLIPFRAME..

What's NEW in CMS IntelliCAD® 8.2 Premium

Working with Files

• Export to a 3D .pdf file (available at PE Plus).

• Export to a 2D .pdf file now includes new compression modes, image clipping, and gradient hatches.

• For .pdf, .dwg, and .dgn underlays, new support includes monochrome, fade, background color adjust, show, and show clipped properties.

• Export to a .bmp file now supports visual styles.

• Some versions of IntelliCAD include the ability to open, save, create, and edit .dgn files

Performance Enhancements

• Increased performance when working with many external references.

• Increased performance for PDF creation and reduction of resulting ..pdf file size

• Increased selection performance in drawings with complex blocks.

• Improved pan and zoom speed for very large drawing files.

• New CACHEFILES will externally cache layout data to enhance layout switching performance and memory usage.

Text

• New multiline text editor allows users to edit multiline text in place. However, not all multiline text features are implemented in the new editor. To switch to the older dialog box version of the multiline text editor, set the MTEXTED system variable to "oldeditor".

• New Field command allows users to create a field as multiline text.

User Interface

• The ribbon interface now includes context sensitive menus, menu groups, panel expanders, CUI versioning support, ability to show/hide panels and tabs, and can be customized using the CUSTOMIZE command.

Working with entities

• New dialog box for the REFEDIT command and new -REFEDIT command

• New dialog box for the ARRAY command and new -ARRAY command.

• New TEXTTOFRONT command moves text, dimensions, and leaders to the front of other entities.

Viewing and rendering drawings

• Users who previously used Ctrl + Left mouse click and drag to orbit the drawing should now use Shift + Middle mouse (or wheel) click and drag to orbit. Ctrl + Left mouse click and drag now supports the standard Windows copy selected entities feature. Simply Ctrl + Left mouse click and drag a selection to make a copy.

• New integration with Artisan Renderer on all CMS IntelliCAD 8.2 versions allows users to quickly create a photo-realistic image of models using a wide range of pre-set materials and lighting setups combined with the ability to create custom lights and realistic materials.

• New commands VPMAX and VPMIN allowing users to maximize and minimize viewports.

More features

• The Properties pane now supports more entities and additional properties, such as light entities and light properties, material properties, etc.

. • For IntelliCAD versions that include a ribbon, the ribbon now includes context sensitive menus, menu groups, panel expanders, CUI versioning support, ability to show/hide panels and tabs, and can be customized using the CUSTOMIZE command.

• Entity snapping for underlays are now accessible using the Options command.

• New BCOUNT command counts the number of blocks in a selection set.

• New IMAGEFRAMEMODE command controls whether image frames are visible and printed.

• New command line version commands: -MENU and -MENULOAD.

APIs

• IntelliCAD 8.2 uses Teigha version 4.1.1 from the Open Design Alliance.

• Updated .NET API with new functions

• .NET plugins can now be autoloaded.

• Many new LISP functions.

System Variables

• Added or updated: ARTISANLICENSE, AUDIONOTETOOLTIP, BLOCKCACHE, CACHEFILES, CACHEMAXFILES, CACHEMAXTOTALSIZE, DGNOSNAP, DRAWINGTYPE, DTEXTED, DWFOSNAP, HYPERLINKBASE, LAYLOCKFADECTL, ORBITPREVIEWDELAY, PDFOSNAP, RENDERPLANARENTS, SHOWGRIPMENUS, SKETCHMODE, UNDERLAYFADEDEFAULT, WNDCUSDLGPOS, WNDCUSDLGSIZE, WSAUTOSAVE, XDWGFADECTL, XFADECTL.
